拉取registry镜像

docker pull registry

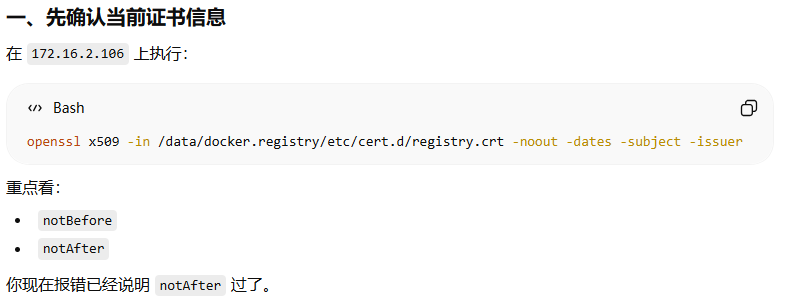

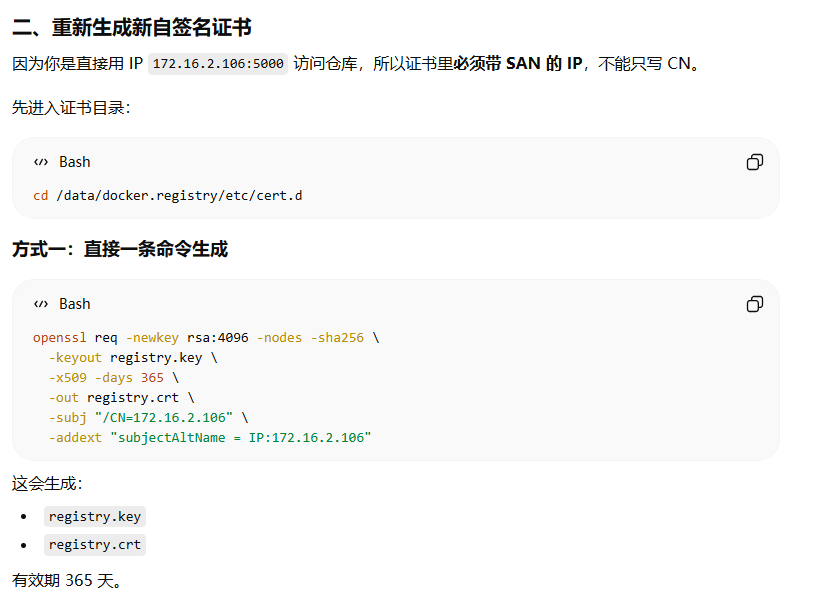

自签名证书生成（todo 完善）

参考：https://vuepress.mirror.docker-practice.com/repository/registry_auth/#

启动registry容器（设置好后面需要适配docker-registry-ui 的环境变量）

  docker run -d \
  --name registry \
  -v /data/docker.registry/etc/cert.d:/etc/cert.d \
  -v /data/docker.registry/var/lib/registry:/var/lib/registry \
  -p 5000:5000 \
  --restart always \
  -e REGISTRY_HTTP_TLS_KEY=/etc/cert.d/registry.key \
  -e REGISTRY_HTTP_TLS_CERTIFICATE=/etc/cert.d/registry.crt \
  -e REGISTRY_HTTP_HEADERS_Access-Control-Allow-Origin='["http://172.16.2.106:9001"]' \
  -e REGISTRY_HTTP_HEADERS_Access-Control-Allow-Methods='["HEAD", "GET", "OPTIONS", "DELETE", "POST", "PUT", "PATCH"]' \
  -e REGISTRY_HTTP_HEADERS_Access-Control-Allow-Headers='["Authorization", "Accept", "Content-Type", "Cache-Control"]' \
  -e REGISTRY_HTTP_HEADERS_Access-Control-Allow-Credentials='["true"]' \
  -e REGISTRY_HTTP_HEADERS_Access-Control-Expose-Headers='["Docker-Content-Digest"]' \
  -e REGISTRY_STORAGE_DELETE_ENABLED='true' \
  docker.io/registry

配置docker-registry-ui

官方相关配置

docker run -d --name registry-ui -p 9001:80 -e REGISTRY_URL=https://172.16.2.106:5000 -e REGISTRY_TITLE=WEEW12REGISTRY -e SINGLE_REGISTRY=true -e DELETE_IMAGES=true docker.io/joxit/docker-registry-ui:2.6.0

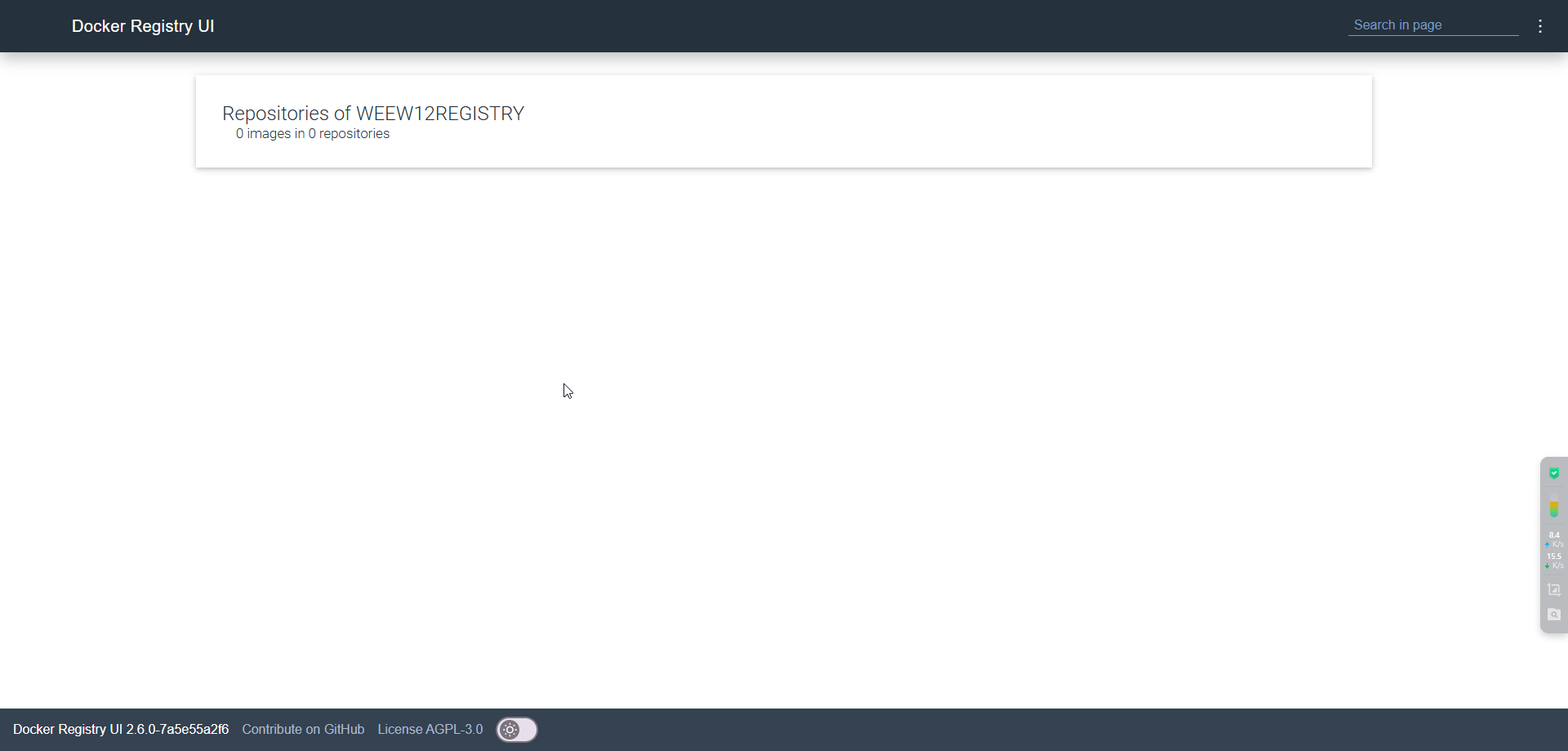

访问页面

http://ip:9001

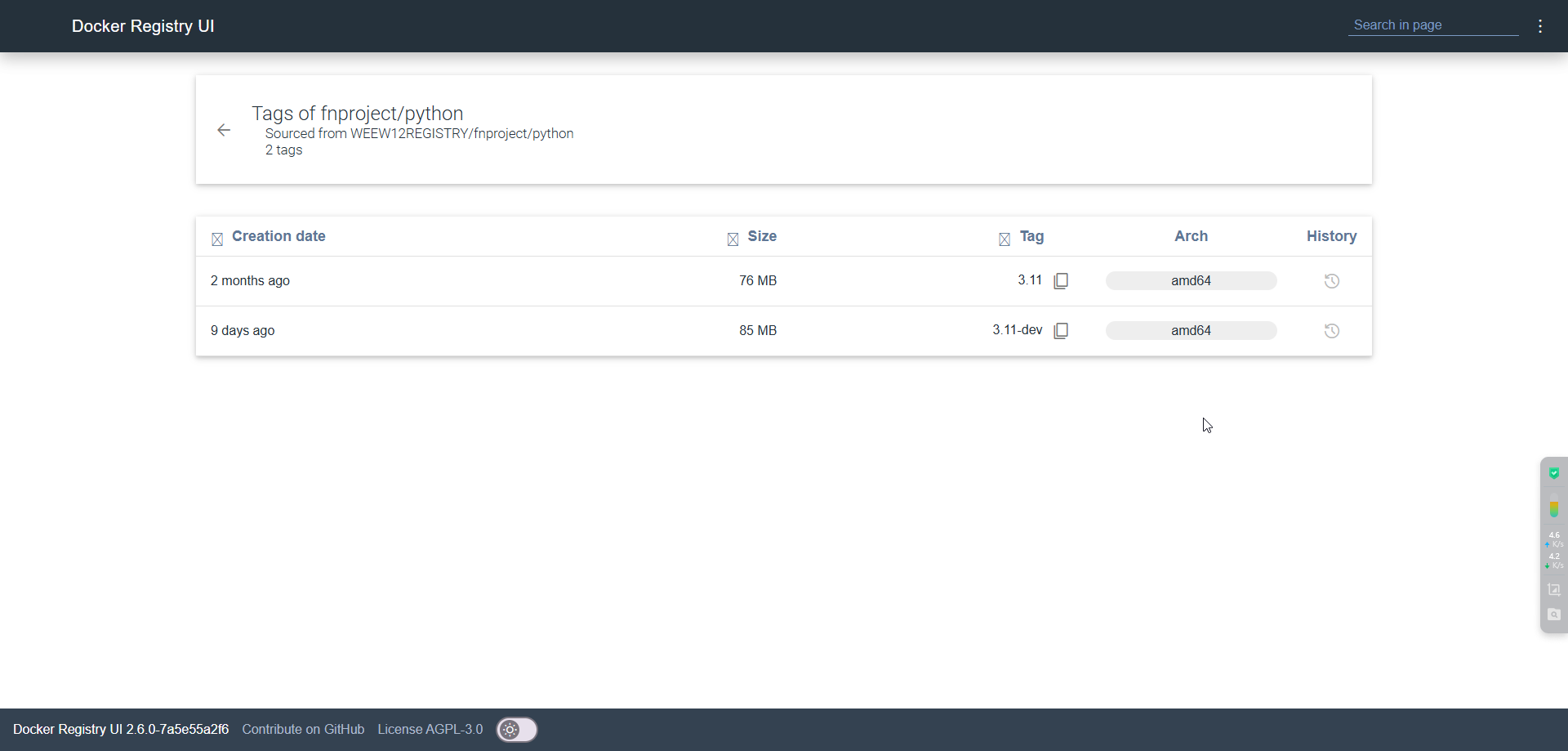

推送镜像后再查看：
